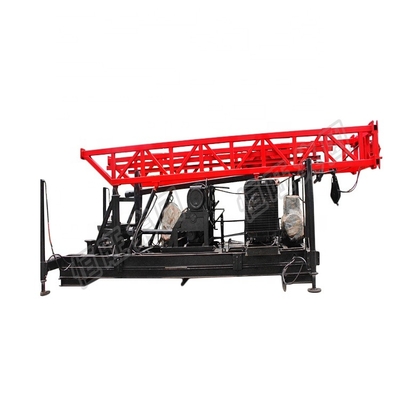

Diesel Engine Driven 300m water well drilling rig machine for sale use borewell used rigs in
Diesel Engine Driven 300m water well drilling rig machine for sale use borewell used rigs in
1,SPJ-300 water well drill rig is electric power , if electricity limit ,
also can change to diesel engine power.
2,The drill machine is bulk type rotary machine , Main usage use for fine particle geology , and normal is soft rock geology
3,When machine work use mud washing fluid (positive cycle), Spindle rotation then make drill tools put in motion. Use winch system make decompression drilling , promotion and demotion drill tools, running string. Impact sampling , promotion and demotion drill tower. and so on.
Diesel Engine Driven 300m water well drilling rig machine for sale use borewell used rigs in
| Model | SPJ-300 | SPJ-600 | |
| (mm) Drill Diameter | Φ500-1800 | Φ500-2500 | |
| (m) Drill Depth | 400-500 | 600 | |
| (kn/m) Maximum output torque | 18 | 18 | |
| Drive pipe(mm) | 108×108×4000 | 108×108×8000/108×108×12000 | |
| (mm) Drill pipe | φ89×4200, | φ89 | |
| main winch | Single rope lift | 30 | 35 |
| auxiliary winch | Single rope rated lift | 20 | 15 |
| Spindle inner diameter(mm) | Φ500-1200 | Φ605 | |
| Spindle revolving speed(r/min) | 40,70,128 | 42/75/134 | |
| Drill Mast vertical height(m) | 8.6 | 15 | |
| Weight (T) | 6.5 | 11 | |
| Dimension (mm) | 8400×2050×8000 | ||
