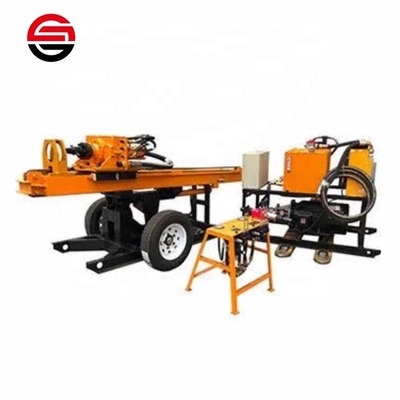

Construction works   Portable borewell CSMG50 dth drilling rig for soil testing

1 Set
MOQ
$3,200.00(1 - 2 Sets) $3,000.00(>=3 Sets)
価格
Construction works   Portable borewell CSMG50 dth drilling rig for soil testing
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
Applicable Industries: Construction works , Energy & Mining
Showroom Location: None
Condition: New
Type: Rotary Drilling Rig
Power Type: Electric
Usage: Construction
Voltage: 380V/Customized
Dimension(L*W*H): 2720*850*900mm
Weight: 750kg
Warranty: 6 months
Local Service Location: None
証明: ISO&CE
color: yellow/blue/custom
Air consumption: 9~12m3/min
Working pressure: 10~15bar
Drilling depth: 10~100m
Rotation torque: 1700~6800N.m
Max.Lift force: 27.5~65kN
基本情報
証明: ISO&CE
お支払配送条件
Packaging Details: Nude packing, or wooden box
Supply Ability: 100 Set/Sets per Month
製品の説明
Recommend Products
We can supply all series of drilling equipment and drilling tools
Our products use high-quality raw materials, utilizing advanced craft technologies and imposing strict quality inspection.
Product range covers:Down the hole hammer and bits(dth hammers and dth bits),drill pipes, threaded drilling bits, reverse circulation hammers and bits, shank adapters and coupling sleeves, drilling rig, air compressor and spare parts for drill equipment.

All products are interchangeable with various products manufactured by Atlas Copco.
Products Description
Powerful hydraulic drive,easy and reliable
Structure well-knit,easy to move
Can achieve double-line drilling according to the requirements
Operation panel can be far away the drill hole,protect operator

Half hydraulic

Full hydraulic

Model
CSMG40
CSMG50
CSMG70
CSMG90A
Air exhaust(m³/min)
9~12
9~12
9~12
9~12
Hole diameter(mm)
90~150(rock)
90~180(rock)
90~230(rock)
90~250(rock)
Drill depth(m)
10~60
10~60
25~70
25~100
Drill rod(mm)
Φ76*1500
Φ89*1500
Φ76*1500 Φ89*1500
Φ76*1500
Φ89*1500
Φ76*1500
Φ89*1500
Rotary torque(N.m)
1700
3600
5200
6800
Lifting force(kN)
27.5
45
65
65
Hydraulic pressure(Mpa)
16
16
16
16
Electric motor(kw)
7.5+4kw
22
25
30
Weight(kg)
750
1100
1300
1400
Dimension(mm)
1400*730*1200
1400*730*1200
1400*730*1200
1400*730*1200
Application
Quarrying
Anchoring
Product packaging
Spare parts
Company Profile
Quzhou Jugong Machinery Co.,Ltd.specialized in machine R&D and manufacturing for 10 years. Our product cpvers air compressors,jack hammer,drill rig,drill rig,parts,booster,tunnel shotcreting machine and other machinery hardware product etc.
Our products are popular in more than 50 areas, such as Europe , South America, Southeast Asia, the middle East and etc.
We have advanced new design every year. We are always ready to provide quality products and good after-sales service for every customer. As Chinese professional machinery manufacturer and exporter, we sincerely hope to eastablish business relations with your esteemed corporations.
Certifications
Our Service
FAQ

Q1: Are you factory or trade company?
A1: We are factory. And we have ourselves trading company.

Q2: What the exactly address of your factory?
A2: Our company is located in JNo.9 Kaixuan Ave West,Economic Zone Quzhou, Zhejiang, China

Q3: Warranty terms of your machine?
A3: One year warranty for the machine and technical support according to your needs.

Q4: Will you provide some spare parts of the machines?
A4: Yes, of course.

Q5: What about the voltage of products??Can they be customized?
A5: Yes, of course. The voltage can be customized according to your equirement.

Q6: Which payment term can you accept?
A6: 30% T/T in advanced, 70% T/T against the B/L copy.

Q7: How long will you take to arrange production?
A7: 380V 50HZ we can delivery the goods within 7-15 days. Other electricity or other color we will delivery within 25-30 days.

Q8: Can you accept OEM orders?
A8: Yes, with professional design team, OEM orders are highly welcome.

Q9: Which trade term can you accept?
A9: Available trade terms: FOB, CIF, CFR, EXW, CPT, etc.
